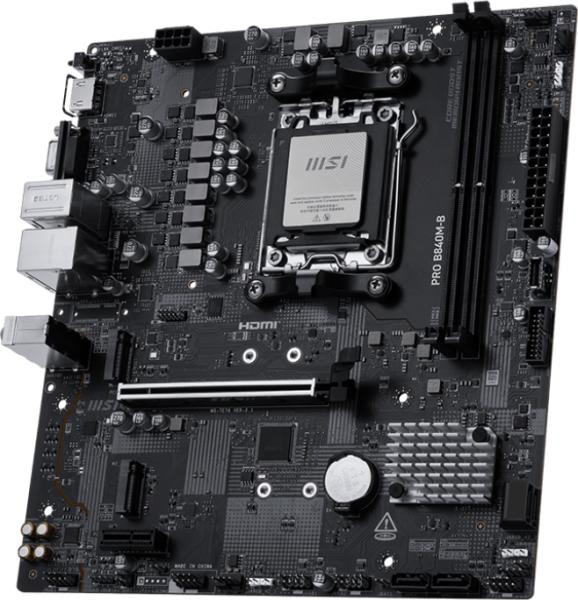

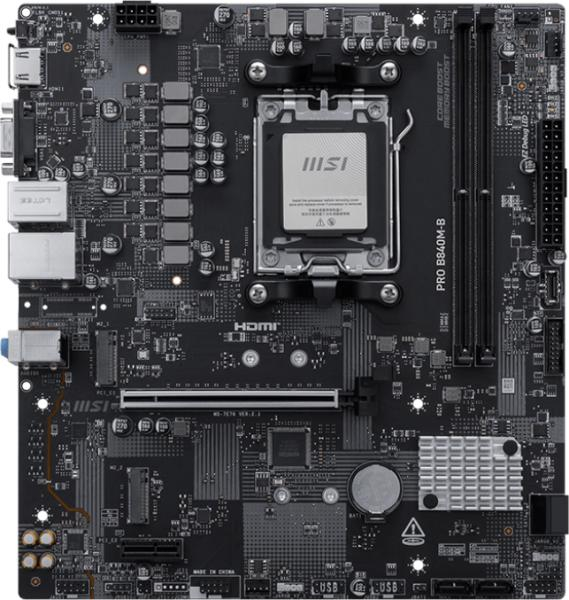

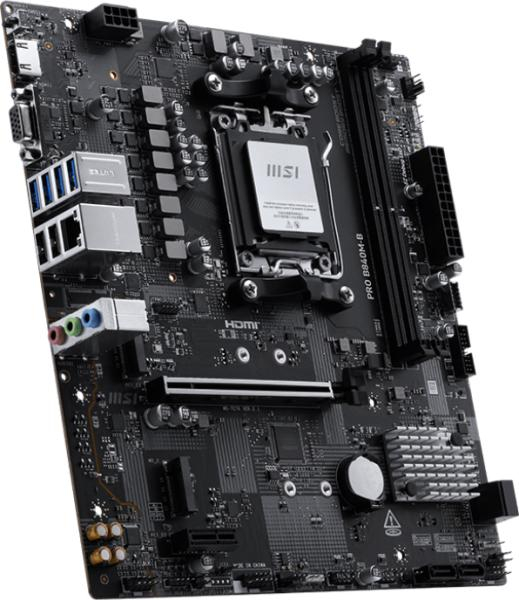

MSI PRO B840M-B AM5 mATX MB

Brand: MSI

Cod producător: PRO B840M-B (7E76-002R)

Socket procesor: AM5

Format placă: mATX (Micro‑ATX)

Compatibilitate procesoare: AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series

Sloturi RAM: 2 x DIMM DDR5

Tip memorie RAM: DDR5

Capacitate RAM maximă: 128GB

Frecvențe RAM suportate: 4800 MHz 5600 MHz 5600 MHz (OC) 7200 MHz (OC) 8000 MHz (OC)

Stocare – SATA: 4 x SATA III 6Gb/s RAID 0 / 1 / 10

Stocare – M.2: 2 x M.2 PCIe 4.0 (2260/2280) RAID 0 / 1

Rețea (LAN): 2.5 Gigabit Ethernet (Realtek RTL8125D)

Wireless / Bluetooth: Nu

Audio: Realtek ALC897 HD Audio 7.1

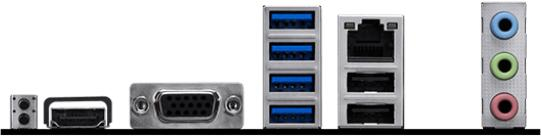

Porturi USB spate: 2 x USB 2.0 4 x USB 3.2 Gen1 Type‑A 1 x LAN RJ‑45 3 x Audio Jack (Line‑In / Line‑Out / Mic)

Conectori interni: 1 x USB‑C 3.2 Gen1 header 2 x USB 3.2 Gen1 header 4 x USB 2.0 header 1 x Audio header 1 x Serial header 1 x SPI header 24‑pin ATX Power 8‑pin CPU Power

Caracteristici speciale: 7+2+1 Phase Power Design MSI Frozr AI Cooling MSI AI Engine MSI LAN Manager EZ Debug LED EZ PCIe Clip II EZ M.2 Clip II MSI Audio Boost MSI Memory Boost Mystic Light Pre‑mounted I/O Shield 6‑Layer PCB / 2oz Copper

Accesorii incluse: 2 x EZ M.2 Clip II 1 x EZ M.2 Clip II Remover 1 x SATA Cable

Dimensiuni: 24.384 cm x 22.6 cm

Garantie: 36 Luni
